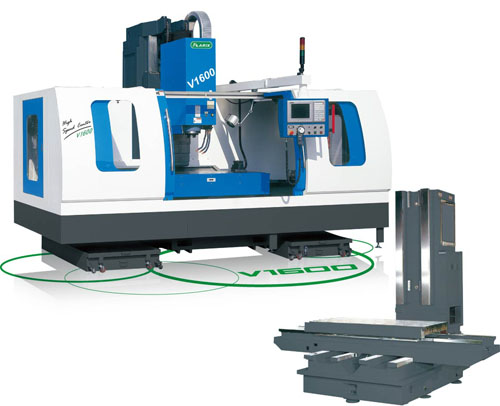

V1600 Gear Head Heavy Duty Center- Machine & technology
- Technology & Options
- Specifications
- Floor Plans
1 |
The geared-head spindle provides increased torque for heavy cuts, still keeping the ability to run at high rpm for high speed machining. |
| 2 |

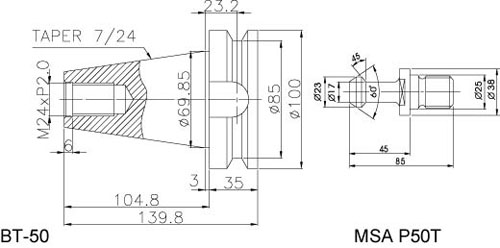

The BT50 is standard for the spindle. |
 |
 |
|
TRT 450 |
There are two optional gear boxes. The integrated gear box has an oil-cooling system circulates oil to all vital areas inside the gear box. The ZF gear box is also possible BT50 up to 8000RPM. |
 |
 |
|
End Mill |
Face Cutter Tool: 100 mm Feed-Rate: 880 mm/min Width of Cut: 100 mm Depth of Cut: 5.7 mm Spindle Speed: 400 rpm Travel: 500 CC/min |
|
Armless ATC | Laser calibration | |||
 |
 |
| Ball bar test | Heat exchanger | |||
 |
 |
| Optional | Arm type ATC | Coolant Through Spindle(CTS) |
||
 |
 |
| Spindle oil cooling system |
Air Conditioner for Electrical Cabinet |
Laser Tool pre-setter | ||
 |
 |
 |
| Tool length pre-setter (Mechanical) |
3D Tool pre-setter (Mechanical) |
Five axis tables (100mm-500mm) |
||
 |
 |
 |
| 3D touch probe | Coolant particles filter (10um) for CTS | |
 |
 |
| Spindles | |||||
|
| V1600 Specifications | ( ) is the optional items |
| Travel | X axis | 1600 mm |
| Y axis | 800 mm | |
| Z axis | 700 mm | |
| Nose to Table | 200 ~ 900 mm | |
| Rapid | X / Y / Z | 12 / 12 / 12 M/min |
| Max Feed | X / Y / Z | 10 M/min |
| Table | Working surface | 1700 x 750 mm |
| T solt | 18 mm / 5 / 130 mm | |
| Load capacity | 2100 kg | |
| ATC | ATC type | Armless |
| Tool number | 24 | |
| Coolant System | Pump power | 1 / 2 HP |
| Tank capacity | 500 L | |
| Spindle | Max Speed | L:10-1,000 / H:6,000 RPM |
| Taper | BT 50 | |
| Motor Power | 25 HP | |
| Cooling way | (Oil cooler) | |
| Center to columa front | 850 mm | |
| Tool | Max. tool length | 250 mm |
| Max. tool weigth | 30 kg | |
| Motor | Motor of tool magazine | 100 W |
| X, Y & Z servomotors | 3.5 / 3.5 / 3.5 KW | |
| Other | ||
| Air pressure | 6~8 kgf/cm2 | |
| Power consumption(Max.) | 40 KVA | |
| Machine | Packing ( L x W x H ) | 310 x 320 x 330 (cm) |
| Net weight | 13,500 KGS |
| ★ Design and specifications are subject to change without prior notice. |
| Standard Accessories | Optional Accessories |
| 1.Work lamp 2.Tools box 3.Coolant pump 4.Coolant system 5.Air blow 6.Heat exchanger 7.Alarm lamp 8.Full closeed guard 9.Automatic lubrication system 10.Operation manual 11.Armless ATC |
1.Hard driver 2.USB Interface 3.Arm type ATC 4.4 / 5th Axis rotary table 5.Tool pre-setter 6.Oil-water separator 7.Oil mist coolant 8.CTS system 9.3D Touch probe 10.Chip conveyor 11.Remote MPG |
