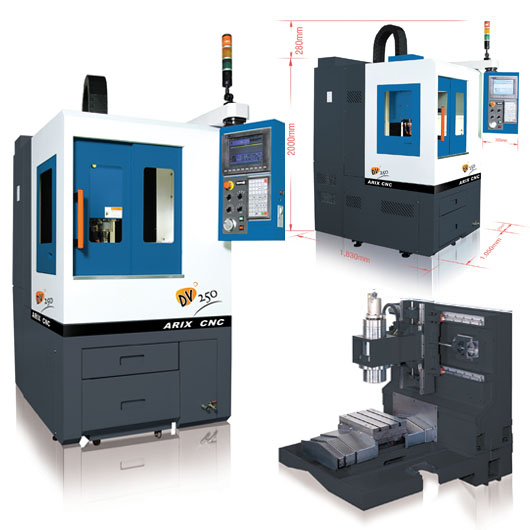

The Most compact, Most Powerful and Quiet Office High Speed Center.
More Accurate, Economical and Faster Machining Through DV250. |
| 1 |
 Occupy only 1 by 1.5 mater small space. |
| |
Powerful cutting capability from build-in BT30 spindle. |
| |
Low noise operation from build-in spindle. |
| |
Designed for mini part. watch parts and jeweler machining. |
| |
The High Speed Center for hardened insert and copper electrodes cutting. |
| |
The Specialized Machine for High Speed Machining in School. |
|
| Mini, High Speed High Precision Machining Center |
| Mini, but Same Functionalities as Machining Centers. |
| Compact Panel |
|

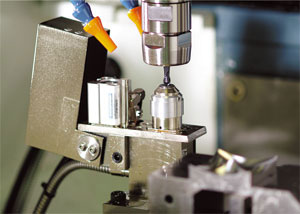

Option Tool Length setter |
 |
|
 |
| 10.4" TFT LCD with simple and user-friendly interface. |
|
Covered tool length setter allows automatic tool length offset by CNC unit. |
| Armless Type 6 Tools ATC |
|
Convenient Chip Tank |
 |
|
 |
| Fully covered ATC prodects the tools from chips and dust. |
|
Separated Chip pan and tank provides clean and easy chip handing. |
| Laser Calibration |
|
Ball Bar Test |
 |
|
 |
| Laser calibration done on all the machines after 48 hours run-in keeps DV250 high accuracy. |
|
Ball bar test and turning guarantees the best accurate parts done by DV250. |
 |
|
 |
| DV 250A spindle configuration BT30 / 24,000 / 4.6 KW M8 Tapping and Drill up to 10 mm. |
|
DV250B Spindle configuration BT30 / 15,000 rpm / 5.5 KW 3D machining and engraving capability. |
| DV250 Specifications |
( ) is the optional items |
| Table |
Working
surface |
210
x 300 mm |
| T
slot |
10
mm x 63 mm x 3 |
| Travel |
Stroke(X
x Y x Z ) |
250
x 200
x 200 mm |
| Center
to Column |
295
mm |
| Nose
to Table |
125
- 325 mm |
| ATC |
ATC type |
Umbrella |
| Tool number |
6 Sec |
| Max. size D x L |
60 x 125 mm |
| Spindle |

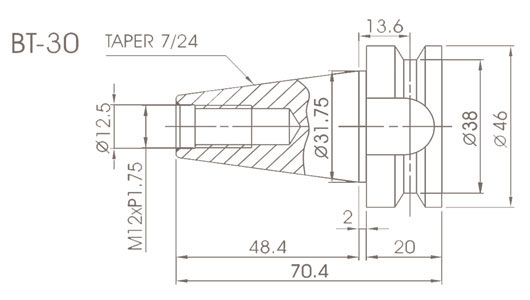

Spindle
Taper |
BT30 |
| Spindle
Speed |
15,000 / 24,000 RPM |
| Spindle
Power |
5.5 / 4.6 KW |
| Transverse |
| Rapid |
15
M/Min |
| Feed |
10
M/Min |
| Servo
Motor horse Power |
X, Y 0.75 KW; Z 1 KW |

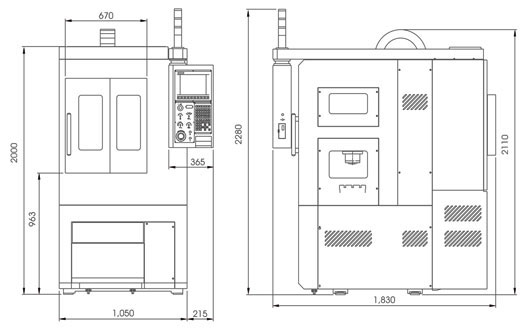

| Dimension |
Dimension
W x D x H |
1500
x 2000
x 1950 (mm) |
| Weight |
1,500
KGS |
| |
★ Design and specifications are subject to change without prior notice. |
| Standard
Accessories |
Optional
Accessories |
1.Tools box
2.Automatic lubrication system
3.Full close cove
4.Work lamp and alarm lamp |
1.Tool setter
2.Ethernet
3.Hard driver
4.High speed machining function |
|
 |
