High performance Steel Bar/Part Turning Center

ARIX CNC Turning centers include the most innovative designs as the mineral stone filled base for high damping capacity, symmetrical ribs design for stability and rigidity, large headstock casting with a two pieces design for easy alignment; optional embedded chip conveyor that gives best sealing and efficient chip removal.
The NN type bearings spindle design guarantees the best performance turning.

Machines Features:
1. Interchangeable collets chuck and jaw chuck for different parts operation.
2. Standard gantry type turret provides the most fast and efficient turning.
3. Optional servo turret provides more flexible and faster tool change arrangement.
4. Mineral stone base generates the super finish surface and longer tool life.
5. Powerful vector torque motor option let the power up to 10HP.
6. High rigid spindle head unit can bear the spindle up to 60mm capacity.
7. The linear guides up to 30mm and 25mm ball screws guarantee the long-term rigidity and accuracy.
8. Coolant through drill option provides efficient and smooth drilling.

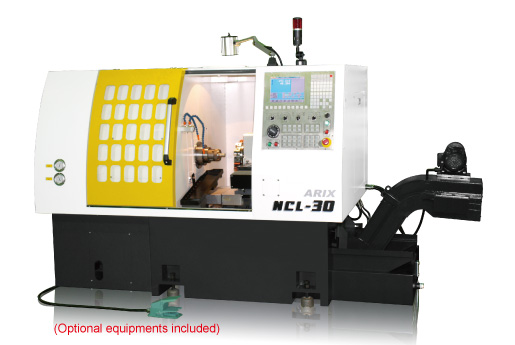

NCL30
Watch the video

Standard

The Jaw chuck with gantry turret: The jaw chuck of 5” and 6” optional give the cutting range more flexible..

The optional servo turret gives a accurate and speedy tool change.


The combination of servo turret and gantry turret.		The two steps hydraulic brake that can ensure the smooth C axis motion for machining in light braking force. The heavy braking can stop and take all the vibration from milling operations.		The large symmetrical head stock can bear bigger spindle up to 60mm capacity.

				Optional
The mineral stone base absorbs all the cutting vibration and generate super finish surface.		The cooling system for Hydraulic system		Optional


Live Tools Turret give capacity of milling		The coolant through drill option cuts the good finish holes.		Oil Mister

Durable and Compact Hardwares

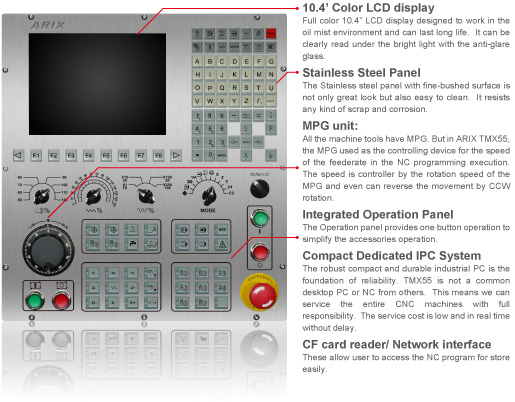

Arix CNC TMX hardware has become more compact and reliable. The slimline operator panel has an extremely low mounting depth. High contrast and good readability even from extreme angle of vision make operation easier. All the keys arrangement is optimized for the operation on the NCL series with bar feeder.

The rigid IPC unit equips with the low power dissipation industrial Pentium CPU, reliable servo boards and I/O boards.

All the spindle inverter, AC servo drivers and motors are durable and permit the best reliability

Optional Mitsubishi CNC unit.

.

All the spindle inverter, AC servo drivers and motors are durable and permit the best reliability.
.

Easy Progmminng Teach-In Functions


TURNING (STRAIGHT AND TAPER)	FACING (STRAIGHT AND TAPER)	THREADING (STRAIGHT, TAPER AND MULTIPLE)
Input the profile data from the blueprint. Press the simulation key to generate the graphic tool path.	Input the specific parameters for this operation according to the graphic guide.	For straight, taper or facial type of threads can be multiple as well.


MPG SIMULATION	END DRILLING	GROOVING (LONGITTUDINAL AND AXIAL)
After the machining program is loaded, select the MPG mode to let the NC program be executed according to the MPG rotaion speed.	Input the start, end point and drilling conditions to generate the NC program.	Do both longitudinal and axial grooving combining roughing and finishing.

Turning Milling Machine Specifications

( ) is the optional items

Specifications		UNIT	NCL-30	NCL-42	NCL-60
Gantry	Max. Turning diameter	mm	30	42	60
Turret	Max. Turning diameter	mm	130	150	150
Max. Turning length		mm	220	220	220
Max. bar capacity		mm	30	42	60
Spindle bore		mm	42	56	76
Collect chuck			CR30A4	CR42A5	CR60A6
Spindle nose			A2-4	A2-5	A2-6
Spindle bearing diameter		mm	70	80	100
Spindle speed		r.p.m.	40~6000	40~6000	40~4000
Spindle motor power		HP	5	5	5
Stroke of X		mm	220	220	220
Stroke of Z		mm	380	380	380
Rapid Transverse X/Z		M/min	15	15	15
X/Z axis servo motor		km	1	1	1
X/Z Ballscrew diameter		mm	25	25	25
X/Z Linear guide		mm	30	30	30
Gantry	Number of fix tools	PCS.	6 turning +4 I.D	6 turning +4 I.D	6 turning +4 I.D
	Turning of diameter	mm	16	16	16
	Boring tool diameter	mm	20	20	20
Servo turret	Number of fix tools		8	8	8
	Turning of diameter	mm	16	16	16
	Boring tool diameter	mm	20	20	20
Spindle run out		mm	0.005	0.005	0.005
Positioning of axis		mm	0.005	0.005	0.005
Repeatability of axis		mm	0.003	0.003	0.003
Min. setting unit		mm	0.001	0.001	0.001
Hydraulic Pump		HP	1	1	1
Coolant Tank Capacity		L	150	150	150
Coolant Pump		HP	1/4	1/4	1/4

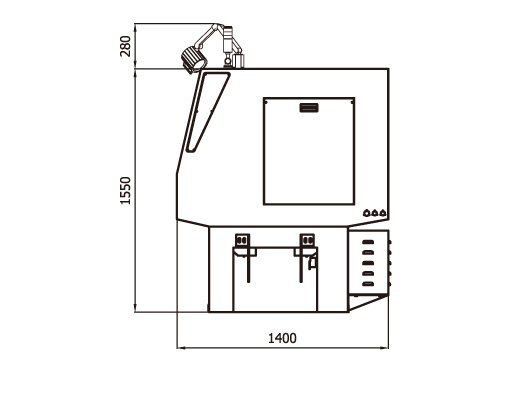

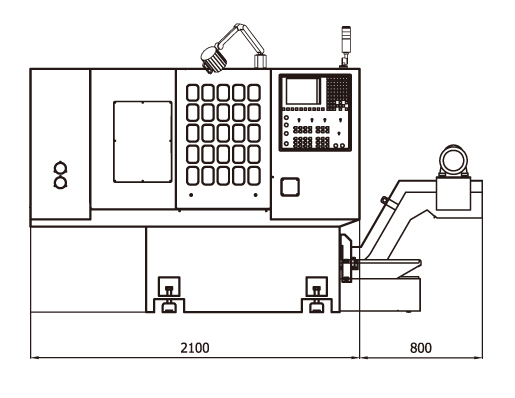

Dimension(M)		M	2 x 1.5 x 1.8	2 x 1.5 x 1.8	2 x 1.5 x 1.8
Machine weight		Kgs	3000	3700	4000

★ Design and specifications are subject to change without prior notice.

Standard Accessories	Optional Accessories
‧Operative Lamp ‧Tool Box ‧Automatic Lubricant System	‧Auto Bar Feeder Machine ‧Transformer ‧Part Catcher ‧Chip Conveyor
